Session#

The Janssen Server provides multiple configuration tools to manage the session.

Use the command line to perform actions from the terminal. Learn how to use Jans CLI here or jump straight to the Using Command Line

Use a fully functional text-based user interface from the terminal. Learn how to use Jans Text-based UI (TUI) here or jump straight to the Using Text-based UI

Use REST API for programmatic access or invoke it via tools like CURL or Postman. Learn how to use Janssen Server Config API here or jump straight to the Using Configuration REST API

Using The Command Line#

In the Janssen Server, you can get session detail using the command line. To get the details of Janssen command line operations relevant to the session, check the operations under the AuthSessionManagement task using the command below.

Command
jans cli --info AuthSessionManagement
Sample Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
Operation ID: get-session-by-id
  Description: Get session by id.
  Parameters:
  sid: Session identifier. [string]
Operation ID: delete-session
  Description: Delete a session.
  Parameters:
  sid: Session identifier. [string]
Operation ID: revoke-user-session
  Description: Revoke all sessions by userDn
  Parameters:
  userDn: User domain name [string]
Operation ID: get-sessions
  Description: Return all session
Operation ID: search-session
  Description: Search session
  Parameters:
  limit: Search size - max size of the results to return [integer]
  pattern: Search pattern [string]
  startIndex: The 1-based index of the first query result [integer]
  sortBy: Attribute whose value will be used to order the returned response [string]
  sortOrder: Order in which the sortBy param is applied. Allowed values are "ascending" and "descending" [string]
  fieldValuePair: Field and value pair for seraching [string]

Get All Sessions#

Use the operation ID get-sessions to get all the sessions on the Janssen Server.

Command
jans cli --operation-id get-sessions
Sample Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
{
  "start": 0,
  "totalEntriesCount": 57,
  "entriesCount": 50,
  "entries": [
    {
      "outsideSid": "52aaa70c-f526-43fb-bf0d-3fb86fbd171c",
      "lastUsedAt": "2025-01-22T09:11:35",
      "authenticationTime": "2025-01-22T09:11:35",
      "state": "unauthenticated",
      "sessionState": "752d881d793fa7ee8c0e93d55d64ea091783dd0aa34087dd35eeb15d85e356dc.01d7ca76-a5fa-4fa0-b8a4-40ea6506f596",
      "permissionGrantedMap": {
        "permissionGranted": {
          "6d5d9076-848c-46fb-ade4-8cc45939490f": false
        }
      },
      "sessionAttributes": {
        "acr": "agama_co.acme.password",
        "opbs": "3e2343ab-f53f-462a-85c1-54ee2fab282d",
        "scope": "openid",
        "auth_step": "1",
        "client_id": "6d5d9076-848c-46fb-ade4-8cc45939490f",
        "remote_ip": "103.54.21.218",
        "acr_values": "agama_co.acme.password",
        "redirect_uri": "https://ossdhaval-hardy-tortoise.gluu.info",
        "response_type": "code"
      },
      "expirationDate": "2025-01-22T11:11:35",
      "deletable": true,
      "creationDate": "2025-01-22T09:11:35",
      "persisted": false,
      "ttl": 0,
      "opbrowserState": "3e2343ab-f53f-462a-85c1-54ee2fab282d"
    },
    {
      "outsideSid": "b5673b54-3e9a-4546-8084-1293a13f2135",
      "lastUsedAt": "2025-01-23T07:26:58",
      "userDn": "inum=b1175c2c-78c7-4361-8f8e-a90bbf164d28,ou=people,o=jans",
      "authenticationTime": "2025-01-23T07:26:58",
      "state": "authenticated",
      "sessionState": "217fe1b3e88065f5807ac5edf7a67e90b9396931d7530f1d86abb81c0f2e321b.7e677df9-2037-4a60-bc89-c44a7b954c82",
      "permissionGrantedMap": {
        "permissionGranted": {
          "8af59ff6-7e38-4e9b-a92e-62d730cdd856": true
        }
      },
    }
.....
.....
.....

Get Session by ID#

We can view the specific session details through its sid using get-session-by-id operation. For example, we can use sid:bdb46abb-06e6-453e-9251-b0b697070d6a with --url-suffix to retrieve the session details.

The following command is below:

Command
jans cli --operation-id get-session-by-id \
--url-suffix="sid:bdb46abb-06e6-453e-9251-b0b697070d6a"
Command Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
{
  "outsideSid": "bdb46abb-06e6-453e-9251-b0b697070d6a",
  "lastUsedAt": "2025-01-17T06:05:59",
  "userDn": "inum=b1175c2c-78c7-4361-8f8e-a90bbf164d28,ou=people,o=jans",
  "authenticationTime": "2025-01-17T06:05:59",
  "state": "authenticated",
  "sessionState": "b74bda0d78e525b5066b73dc6421247a27902490193b2729b037c09b5da82151.07f309ef-413f-46e1-9a14-c571d3d3117f",
  "permissionGrantedMap": {
    "permissionGranted": {
      "61589e3d-bed3-42b2-8153-06a93e851644": true
    }
  },
  "sessionAttributes": {
    "acr": "agama_org.gluu.agama.pw.main",
    "sid": "bdb46abb-06e6-453e-9251-b0b697070d6a",
    "opbs": "870cd8ae-80da-40b5-b739-443f013285b9",
    "scope": "openid",
    "agamaData": "{\"userId\":\"admin\",\"_encInum\":\"jgVQd77oPq50rexblyE9tgmPgwgpZt1u4OWRFCYHFaKx99r/aU6HWQ==\"}",
    "auth_step": "1",
    "auth_user": "admin",
    "client_id": "61589e3d-bed3-42b2-8153-06a93e851644",
    "remote_ip": "103.54.21.218",
    "acr_values": "agama_org.gluu.agama.pw.main",
    "redirect_uri": "https://ossdhaval-hardy-tortoise.gluu.info",
    "response_type": "code",
    "auth_external_attributes": "[{\"agamaData\":\"java.lang.String\"}]",
    "successful_rp_redirect_count": "1",
    "61589e3d-bed3-42b2-8153-06a93e851644_authz_scopes": "openid"
  },
  "expirationDate": "2025-01-18T06:05:28",
  "deletable": true,
  "creationDate": "2025-01-17T06:05:28",
  "persisted": false,
  "ttl": 0,
  "opbrowserState": "870cd8ae-80da-40b5-b739-443f013285b9"
}

Search session#

We can search the session based on the limit using the search-session operation. For example, if we set the limit to 2, we will receive the details of two sessions.

Command
jans cli --operation-id search-session \
--endpoint-args limit:2
Command Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
{
  "start": 0,
  "totalEntriesCount": 57,
  "entriesCount": 2,
  "entries": [
    {
      "outsideSid": "52aaa70c-f526-43fb-bf0d-3fb86fbd171c",
      "lastUsedAt": "2025-01-22T09:11:35",
      "authenticationTime": "2025-01-22T09:11:35",
      "state": "unauthenticated",
      "sessionState": "752d881d793fa7ee8c0e93d55d64ea091783dd0aa34087dd35eeb15d85e356dc.01d7ca76-a5fa-4fa0-b8a4-40ea6506f596",
      "permissionGrantedMap": {
        "permissionGranted": {
          "6d5d9076-848c-46fb-ade4-8cc45939490f": false
        }
      },
      "sessionAttributes": {
        "acr": "agama_co.acme.password",
        "opbs": "3e2343ab-f53f-462a-85c1-54ee2fab282d",
        "scope": "openid",
        "auth_step": "1",
        "client_id": "6d5d9076-848c-46fb-ade4-8cc45939490f",
        "remote_ip": "103.54.21.218",
        "acr_values": "agama_co.acme.password",
        "redirect_uri": "https://ossdhaval-hardy-tortoise.gluu.info",
        "response_type": "code"
      },
      "expirationDate": "2025-01-22T11:11:35",
      "deletable": true,
      "creationDate": "2025-01-22T09:11:35",
      "persisted": false,
      "ttl": 0,
      "opbrowserState": "3e2343ab-f53f-462a-85c1-54ee2fab282d"
    },
    {
      "outsideSid": "b5673b54-3e9a-4546-8084-1293a13f2135",
      "lastUsedAt": "2025-01-23T07:26:58",
      "userDn": "inum=b1175c2c-78c7-4361-8f8e-a90bbf164d28,ou=people,o=jans",
      "authenticationTime": "2025-01-23T07:26:58",
      "state": "authenticated",
      "sessionState": "217fe1b3e88065f5807ac5edf7a67e90b9396931d7530f1d86abb81c0f2e321b.7e677df9-2037-4a60-bc89-c44a7b954c82",
      "permissionGrantedMap": {
        "permissionGranted": {
          "8af59ff6-7e38-4e9b-a92e-62d730cdd856": true
        }
      },
      "sessionAttributes": {
        "acr": "agama_co.acme.password",
        "sid": "b5673b54-3e9a-4546-8084-1293a13f2135",
        "opbs": "9f2d7434-7018-4bc0-9634-e8efc442c3e8",
        "nonce": "bd524096-0e47-45ba-8912-e7c0e3813116",
        "scope": "openid",
        "state": "d8tg4smk0p",
        "agamaData": "{\"userId\":\"admin\",\"_encInum\":\"jgVQd77oPq50rexblyE9tgmPgwgpZt1u4OWRFCYHFaKx99r/aU6HWQ==\"}",
        "auth_step": "1",
        "auth_user": "admin",
        "client_id": "8af59ff6-7e38-4e9b-a92e-62d730cdd856",
        "remote_ip": "103.54.21.218",
        "acr_values": "agama_co.acme.password",
        "redirect_uri": "https://ossdhaval-hardy-tortoise.gluu.info",
        "response_type": "code",
        "code_challenge": "9mfiZGOOF3KmtfpBI7SY_g5wVTslqkvMQGNAxrfeEso",
        "code_challenge_method": "S256",
        "auth_external_attributes": "[{\"agamaData\":\"java.lang.String\"}]",
        "successful_rp_redirect_count": "1",
        "8af59ff6-7e38-4e9b-a92e-62d730cdd856_authz_scopes": "openid"
      },
      "expirationDate": "2025-01-24T07:26:51",
      "deletable": true,
      "creationDate": "2025-01-23T07:26:51",
      "persisted": false,
      "ttl": 0,
      "opbrowserState": "9f2d7434-7018-4bc0-9634-e8efc442c3e8"
    }
  ]
}

Delete a session#

We can delete the specific session through its sid using delete-sessionoperation. For example, We can usesid:bdb46abb-06e6-453e-9251-b0b697070d6awith--url-suffix` to delete the session. The following command is below:

Command
jans cli --operation-id delete-session /
--url-suffix="sid:bdb46abb-06e6-453e-9251-b0b697070d6a"

This message will be displayed:

Object was successfully deleted.

Revoke all sessions by userDn#

We can revoke the session for the user through its userDn using revoke-user-session operation. For example, We can use userDn:inum=b1175c2c-78c7-4361-8f8e-a90bbf164d28,ou=people,o=jans with --url-suffix to revoke the session. The following command is below:

Command
jans cli --operation-id revoke-user-session /
--url-suffix="userDn:inum=b1175c2c-78c7-4361-8f8e-a90bbf164d28,ou=people,o=jans"

This message will be displayed:

Object was successfully deleted.

Using Text-based UI#

Start TUI using the command below:

Command
jans tui

Session screen#

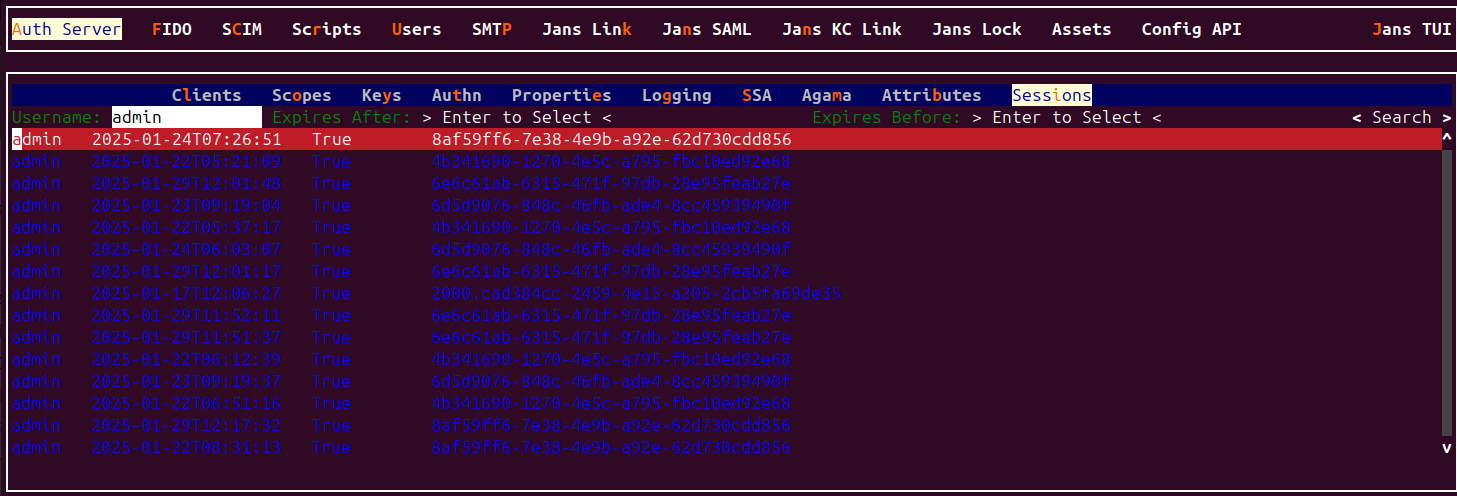

Navigate to Auth Server -> Session to open the Session screen as shown in the image below. This screen provides the available search session functionality. where we can search sessions by user with filters for expires after and expires before dates.

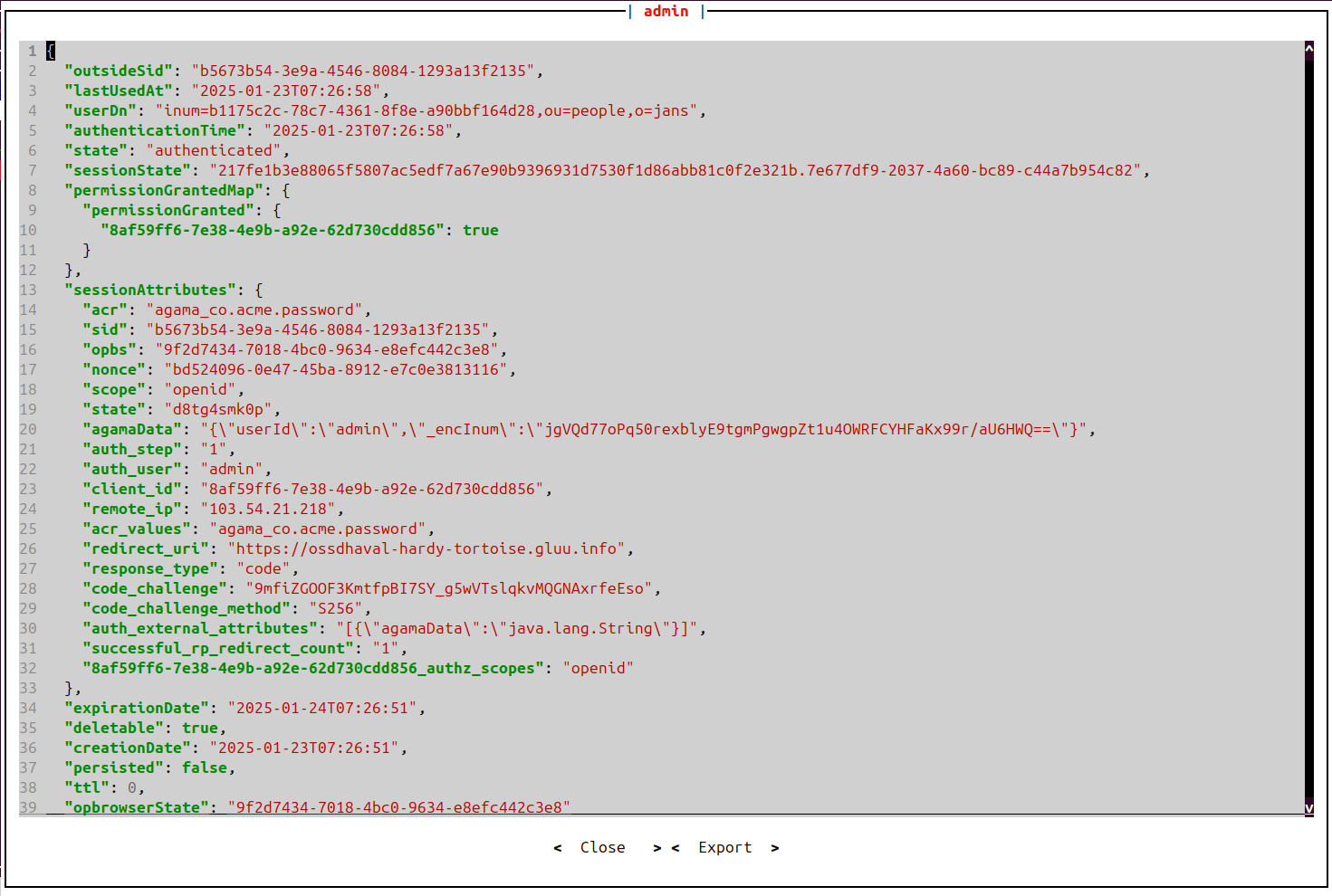

To get the detail of any session, bring the control on that session (using the tab key), and press v key. You can also export the details.

To delete a session, bring the control on that session (using the tab key), and press Delete key.


Using Configuration REST API#

Janssen Server Configuration REST API exposes relevant endpoints for managing and configuring the session. Endpoint details are published in the Swagger document.
