Note

Attribute and User Claims refer to the same user data fields in the Janssen Server.

Attribute#

User claims are individual pieces of user data, like uid or email, that are required by applications in order to identify a user and grant access to protect resources.

Janssen server's default configuration comes with certain user claims already configured. In addition to these, custom user claims can be added as required. The Janssen Server provides multiple configuration tools to perform these tasks.

Use the command line to perform actions from the terminal. Learn how to use Jans CLI here or jump straight to the Using Command Line

Use a fully functional text-based user interface from the terminal. Learn how to use Jans Text-based UI (TUI) here or jump straight to the Using Text-based UI

Use REST API for programmatic access or invoke via tools like CURL or Postman. Learn how to use Janssen Server Config API here or Jump straight to the Using Configuration REST API

Using Command Line#

To get the details of Janssen command line operations relevant to user claims configuration, you can check the operations under Attribute task using the command below:

First thing, let's get the information for Attribute:

Command
jans cli --info Attribute
In return, we get a list of operations IDs as below:

Sample Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Operation ID: get-attributes
  Description: Gets a list of Gluu attributes.
  Parameters:
  limit: Search size - max size of the results to return [integer]
  pattern: Search pattern [string]
  status: Status of the attribute [string]
  startIndex: The 1-based index of the first query result [integer]
  sortBy: Attribute whose value will be used to order the returned response [string]
  sortOrder: Order in which the sortBy param is applied. Allowed values are "ascending" and "descending" [string]
  fieldValuePair: Field and value pair for seraching [string]
Operation ID: put-attributes
  Description: Updates an existing attribute
  Schema: JansAttribute
Operation ID: post-attributes
  Description: Adds a new attribute
  Schema: JansAttribute
Operation ID: get-attributes-by-inum
  Description: Gets an attribute based on inum
  Parameters:
  inum: Attribute Id [string]
Operation ID: delete-attributes-by-inum
  Description: Deletes an attribute based on inum
  Parameters:
  inum: Attribute Id [string]
Operation ID: patch-attributes-by-inum
  Description: Partially modify a JansAttribute
  Parameters:
  inum: Attribute Id [string]
  Schema: Array of PatchRequest

To get sample schema type jans cli --schema <schma>, for example jans cli --schema PatchRequest

Get Custom User Claims#

The user claims that the available in your Janssen Server can be found by using this operation-ID. If we look at the description below:

Operation ID: get-attributes
  Description: Gets a list of Gluu attributes.
  Parameters:
  limit: Search size - max size of the results to return [integer]
  pattern: Search pattern [string]
  status: Status of the attribute [string]
  startIndex: The 1-based index of the first query result [integer]
  sortBy: Attribute whose value will be used to order the returned response [string]
  sortOrder: Order in which the sortBy param is applied. Allowed values are "ascending" and "descending" [string]
  fieldValuePair: Field and value pair for seraching [string]

To get all the user claims without any arguments, run the following command:

Command
jans cli --operation-id get-attributes

To get user claims with passing the arguments, let's retrieve randomly limit:1:

Command
jans cli --operation-id get-attributes --endpoint-args limit:1

It will return only one user claim details randomly:

Sample Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
{
  "start": 0,
  "totalEntriesCount": 72,
  "entriesCount": 1,
  "entries": [
    {
      "dn": "inum=002A,ou=attributes,o=jans",
      "selected": false,
      "inum": "002A",
      "name": "eduPersonScopedAffiliation",
      "displayName": "eduPersonScopedAffiliation",
      "description": "Specifies the person's affiliation within a particular security domainin broad categories such as student, faculty, staff, alum, etc. Thevalues consistof a left and right component separated by an \"@\" sign. The left component is one ofthe values from the eduPersonAffiliation controlledvocabulary.This right-hand side syntaxof eduPersonScopedAffiliation intentionally matches that used for the right-hand sidevalues for eduPersonPrincipalName since both identify a security domain. Multiple \"@\" signsare not recommended, but in any case, the first occurrence of the \"@\" sign starting from theleft is to be taken as the delimiter between components. Thus, user identifier is to the left,security domain to the right of the first \"@\".",
      "origin": "eduPerson",
      "dataType": "string",
      "editType": [
        "admin"
      ],
      "viewType": [
        "admin"
      ],
      "claimName": "edu_person_scoped_affiliation",
      "status": "inactive",
      "saml1Uri": "urn:mace:dir:attribute-def:eduPersonScopedAffiliation",
      "saml2Uri": "urn:oid:1.3.6.1.4.1.5923.1.1.1.9",
      "urn": "oid:1.3.6.1.4.1.5923.1.1.1.9",
      "oxMultiValuedAttribute": false,
      "custom": false,
      "adminCanView": true,
      "adminCanEdit": true,
      "userCanView": false,
      "userCanEdit": false,
      "adminCanAccess": true,
      "userCanAccess": false,
      "whitePagesCanView": false,
      "baseDn": "inum=002A,ou=attributes,o=jans"
    }
  ]
}

To get user claim with pattern & status:

Command
jans cli --operation-id get-attributes \
--endpoint-args limit:3,pattern:profile,status:ACTIVE
In return, we get a list of claims that are matched with the given pattern and status:

Sample Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
{
  "start": 0,
  "totalEntriesCount": 2,
  "entriesCount": 2,
  "entries": [
    {
      "dn": "inum=64A0,ou=attributes,o=jans",
      "selected": false,
      "inum": "64A0",
      "name": "profile",
      "displayName": "Profile URL",
      "description": "URL of the End-User's profile page. The contents of this Web page SHOULD be about the End-User.",
      "origin": "jansPerson",
      "dataType": "string",
      "editType": [
        "user",
        "admin"
      ],
      "viewType": [
        "user",
        "admin"
      ],
      "claimName": "profile",
      "status": "active",
      "saml1Uri": "urn:mace:dir:attribute-def:profile",
      "saml2Uri": "urn:oid:1.3.6.1.4.1.48710.1.3.321",
      "urn": "http://openid.net/specs/openid-connect-core-1_0.html/StandardClaims/profile",
      "oxMultiValuedAttribute": false,
      "custom": false,
      "adminCanView": true,
      "adminCanEdit": true,
      "userCanView": true,
      "userCanEdit": true,
      "adminCanAccess": true,
      "userCanAccess": true,
      "whitePagesCanView": false,
      "baseDn": "inum=64A0,ou=attributes,o=jans"
    },
    {
      "dn": "inum=EC3A,ou=attributes,o=jans",
      "selected": false,
      "inum": "EC3A",
      "name": "picture",
      "displayName": "Picture URL",
      "description": "URL of the End-User's profile picture",
      "origin": "jansPerson",
      "dataType": "string",
      "editType": [
        "user",
        "admin"
      ],
      "viewType": [
        "user",
        "admin"
      ],
      "claimName": "picture",
      "status": "active",
      "saml1Uri": "urn:mace:dir:attribute-def:picture",
      "saml2Uri": "urn:oid:1.3.6.1.4.1.48710.1.3.322",
      "urn": "http://openid.net/specs/openid-connect-core-1_0.html/StandardClaims/picture",
      "oxMultiValuedAttribute": false,
      "custom": false,
      "adminCanView": true,
      "adminCanEdit": true,
      "userCanView": true,
      "userCanEdit": true,
      "adminCanAccess": true,
      "userCanAccess": true,
      "whitePagesCanView": false,
      "baseDn": "inum=EC3A,ou=attributes,o=jans"
    }
  ]
}

Creating a Custom User Claims#

While standard claims provide basic user information, custom user claims allow for the inclusion of domain-specific attributes or application-specific data that might be required for user personalization, authorization, or other business logic. A user claim should be unique and non-null or empty. Follow the steps below to add a custom user claim to the Janssen Server.

Add entry into persistence#

In order to support the new custom claim, add a column to table jansPerson in the persistence backend.

Command will be similar to the one below:

MySQL
ALTER TABLE  jansPerson  ADD COLUMN <claimName> <dataType>

Restart the Janssen services below in order to make this change effective:

jans-auth.service
jans-config-api.service

Configure custom user claim in the Janssen Server#

Add and configure the custom claim using post-attributes operation-ID. As shown in the output for the --info command, the post-attributes operation requires data to be sent according to the JansAttribute schema.

To see the schema, use the command below:

Command
jans cli --schema JansAttribute

The Janssen Server also provides an example of data that adheres to the above schema. To fetch the example, use the command below.

Command
jans cli --schema-sample JansAttribute

Using the schema and the example above, add the below data to the file /tmp/custom-claim.json.

About datatypes

JansAttribute schema requires to specify a datatype. This datatype should map correctly to the datatype of the persistence column added above.

Use the mapping table to below to correctly specify the datatype in the Janssen Server configuration.

Janssen dataType SQL dataType
Text VARCHAR() string value to be kept, SIZE is an integer for max string size
Numeric INT
Boolean SMALLINT
Binary BINARY
Certificate TEXT
Date DATETIME(3)
Numeric INT
Multivalued JSON

Example:

Input
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
{
  "dn": "string",
  "inum": "string",
  "sourceAttribute": "string",
  "nameIdType": "string",
  "name": "newClaim",
  "displayName": "New Claim",
  "description": "string",
  "origin": "string",
  "dataType": "json",
  "editType": [
    "whitePages"
  ],
  "viewType": [
    "user"
  ],
  "usageType": [
    "openid"
  ],
  "claimName": "string",
  "seeAlso": "string",
  "status": "active",
  "saml1Uri": "string",
  "saml2Uri": "string",
  "urn": "string",
  "scimCustomAttr": false,
  "oxMultiValuedAttribute": false,
  "jansHideOnDiscovery": false,
  "custom": true,
  "attributeValidation": {
    "minLength": 85,
    "maxLength": 20,
    "regexp": "string"
  },
  "tooltip": "string",
  "selected": true,
  "adminCanView": true,
  "adminCanEdit": false,
  "userCanView": true,
  "userCanEdit": true,
  "userCanAccess": false,
  "adminCanAccess": true,
  "whitePagesCanView": true,
  "baseDn": "string"
}

Run the following command to add the custom claim:

Command
jans cli --operation-id post-attributes --data /tmp/custom-claim.json
Sample Output
 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
{
  "dn": "inum=bc50c4c4-64c8-45b3-9f38-e8527ddbf833,ou=attributes,o=jans",
  "selected": false,
  "inum": "bc50c4c4-64c8-45b3-9f38-e8527ddbf833",
  "sourceAttribute": "string",
  "nameIdType": "string",
  "name": "newClaim",
  "displayName": "New Claim",
  "description": "string",
  "origin": "string",
  "dataType": "json",
  "editType": [
    "whitePages"
  ],
  "viewType": [
    "user"
  ],
  "usageType": [
    null
  ],
  "claimName": "string",
  "seeAlso": "string",
  "status": "active",
  "saml1Uri": "string",
  "saml2Uri": "string",
  "urn": "string",
  "scimCustomAttr": false,
  "oxMultiValuedAttribute": false,
  "jansHideOnDiscovery": false,
  "custom": false,
  "attributeValidation": {
    "minLength": 85,
    "maxLength": 20,
    "regexp": "string"
  },
  "tooltip": "string",
  "adminCanView": false,
  "adminCanEdit": false,
  "userCanView": true,
  "userCanEdit": false,
  "adminCanAccess": false,
  "userCanAccess": true,
  "whitePagesCanView": false,
  "baseDn": "inum=bc50c4c4-64c8-45b3-9f38-e8527ddbf833,ou=attributes,o=jans"
}

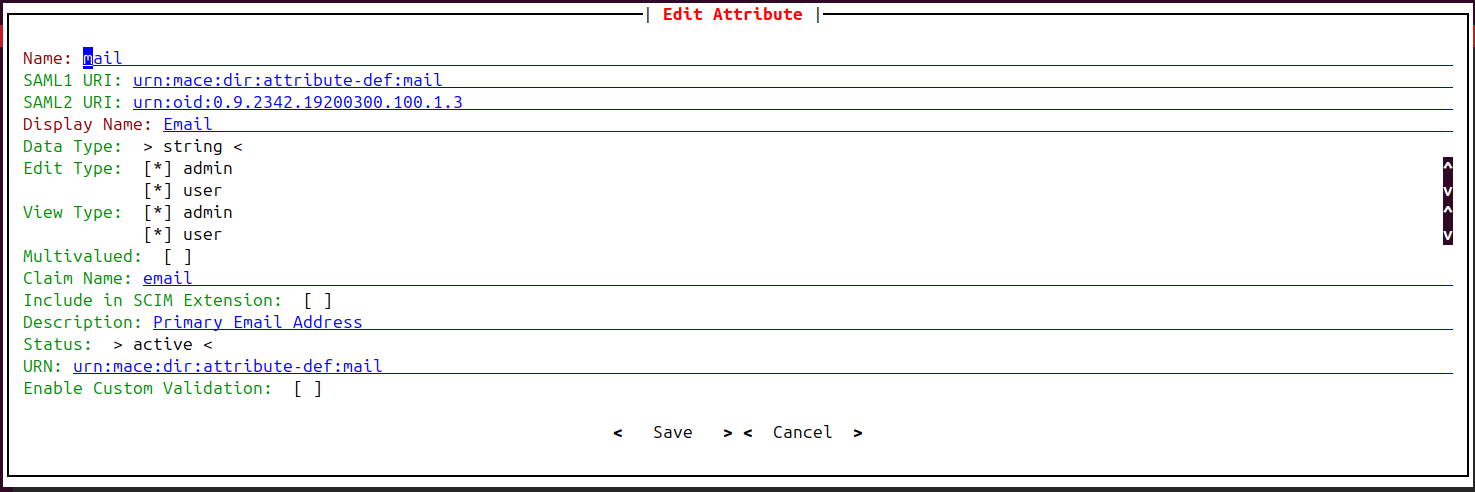

Updating a User Claim#

To update the configuration, follow the steps below.

  1. Get the user claim and store it into a file for editing. The following command will retrieve the existing user claim in the required schema file.
    command
     jans cli -no-color --operation-id get-attributes-by-inum \
     --url-suffix inum:bc50c4c4-64c8-45b3-9f38-e8527ddbf833  \
     > /tmp/update-claim.json

  2. Update values as desired. Updates must adhere to the JansAttribute schema as mentioned here.
  3. Use the updated file to send the update to the Janssen Server using the command below.
    Command
    jans cli --operation-id put-attributes --data /tmp/update-claim.json

    Upon successful execution of the update, the Janssen Server responds with updated configuration.

Get User Claim by inum#

With the get-attributes-by-inum operation-id, we can get any specific user claim matched with Inum. If we know the inum, we can use the below command:

Command
jans cli --operation-id get-attributes-by-inum \
--url-suffix inum:bc50c4c4-64c8-45b3-9f38-e8527ddbf833

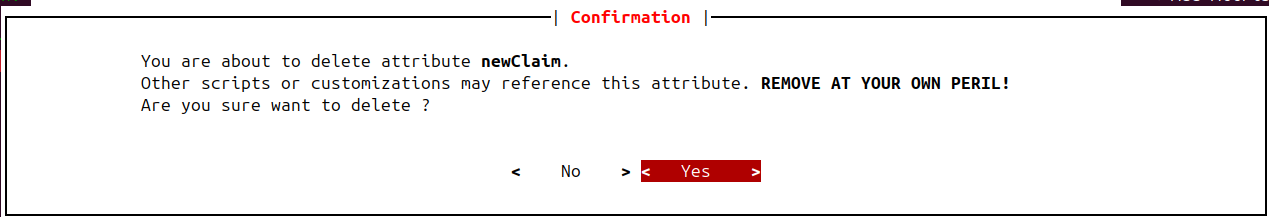

Delete Custom Claim#

Delete a user claim using its inum.

Command
jans cli --operation-id delete-attributes-by-inum --url-suffix inum:EC3A

Patch Custom Claim#

Using operation-id patch-attributes-by-inum, we can modify a custom user claim partially for its properties.

To use this operation, specify the inum of the claim that needs to be updated using the --url-suffix and the property and the new value using the JSON Patch. Refer here to know more about schema.

In this example, we will add the jansHideOnDiscovery and its value is true.

Input
[
  {
    "op": "add",
    "path": "jansHideOnDiscovery",
    "value": true
  }
]

Now let's do the operation with the command line.

Command
jans cli --operation-id patch-attributes-by-inum \
--url-suffix inum:bc50c4c4-64c8-45b3-9f38-e8527ddbf833 \
--data /tmp/patch.json

Using Text Based UI#

Start TUI using the command below:

Command
jans tui

Attribute/User Claims Screen#

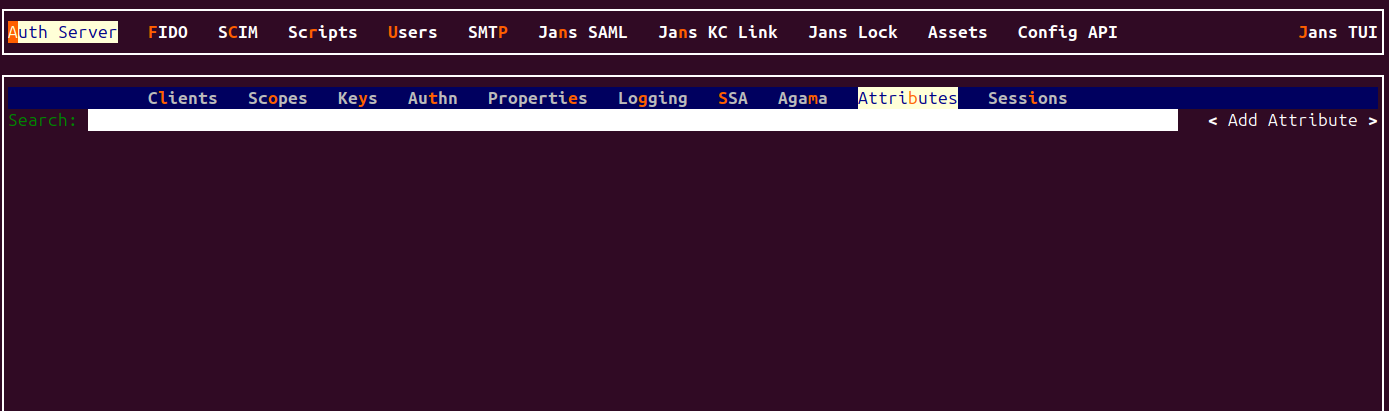

Navigate to Auth Server -> Attributes to open the client screen as shown in the image below.


To get the list of currently added user claims, bring the control to the Search box (using the tab key), and press the Enter key. Type the search string to search for the user claim with the matching claim name.

Add-Update Attribute/User Claims screen#

  • Add a new column in the persistence
  • Use the Add Attributes button to create a new user claim.
  • After adding the valid data using the Save button, add a new user claim.
  • Update the user claim as well.
  • To update the user claim, bring the control to the specific User Claim row and press the Enter key, then it will show the edit screen.

Warning

If the attribute is Multivalued enabled in TUI, datatype should be JSON.


Close and reopen the TUI. The new custom user claim can now be added to any user from user management.

Delete Screen#

  • To delete the user claim, bring the control to the specific Claim row and press the Delete key. Then it will show the Delete confirmation box.


Close and reopen TUI before proceeding with further configuration.

Using Configuration REST API#

Janssen Server Configuration REST API exposes relevant endpoints for managing and configuring the user claim. Endpoint details are published in the Swagger document.
